4001      0.8mm/32mil Linear Travel - 5mm Diameter     4001

4002      1.5mm/60mil Linear Travel - 8mm Diameter       4002

4004      3.0mm/120mil Linear Travel - 8mm Diameter            4004

4010-0   0.5mm/20mil Linear Travel - 8mm Diameter                     4010-0

4010-1   0.5mm/20mil Linear Travel - 8mm Diameter                    4010-1

4010-2   0.5mm/20mil Linear Travel - 8mm Diameter                4010-2

4012      2.0mm/80mil Linear Travel -  8mm Diameter        4012
Attachments and Options

--==--==--==--==--==--==--==--==--==--==--==--==--==--==--==--==--==--

CHEMICAL-RESISTANT CABLE     LINEAR BALL BEARING
EXCELLENT REPEATABILITY        LVDT OR HALF-BRIDGE
--==--==--==--==--==--==--==--==--==--==--==--==--==--==--==--==--==--

SIGNIFICANT OPERATING BENEFITS

bullet

REPEATABLE
  consistently repeat within 0.000004" (0.10 micron) where radial side play is a factor.
  consistently repeat within 0.000002" (0.05 micron) where axial force is a factor.

bullet

ACCURATE
Extraordinary linearity and over-all accuracy due to:
  Linear ball bearing suspensions
  precisely wound coils
  meticulous assembly

bullet

VERSATILE
LVDT or half-bridge coils in many sizes and types.

bullet

RUGGED
Nairda gaging transducers can stand up to the harshest industrial environments with:
  synthetic rubber boots or sealed metal bellows,
  stainless steel bodies,
  chemical-resistant ultra-flexible cable and
  replaceable contact points.

bullet

ADAPTABLE
Nairda provides transducers to match virtually any electronics in common use today.
  Special sensitivity
  Connector type
  Body threads
  Tip types
  Cable exits
  Various Strokes

bullet

LONG LIFE
Precision assembly, quality materials, and a superior cable immune to failures
guarantees these transducers will furnish reliable, accurate measurements for
millions of operations in normal industrial applications.
Careful fixture design and transducer type selection will result in the longest life.

bullet

SUPPORT
Probe Products will be pleased to assist users in selection of transducers for specific applications.
Factory-level technical support is as near as your telephone (508) 627-8771 or e-mail.

We provide Nairda gaging transducers (formerly known as Machsize) for virtually any application using industry-standard types,  miniature units and special designs for grinding and other harsh environments.

The linear ball bearing design reduces friction and side play to new lows resulting in greater accuracy and long life.



--==--==--==--==--==--==--==--==--==--==--==--==--==--==--==--==--==--



4001  0.8mm/32mil Linear Travel - 5mm Diameter

The 4001 is the smallest-diameter full linear-ball-bearing gaging transducer available.

Specification: Half Bridge only
Mechanical Travel: 1.5mm
Boot Material: High Nitrile
Linear Travel: +/- 0.4mm
Travel to Null: 0.4mm +/- 0.05mm
Spring load at Null: 80 grams
Spring Rate: 15 grams/0.250mm
Repeatability: < 0.1 micron
Temperature Range: 0° to 60°C
Temperature Coefficient: Zero < 0.01%/°C Sensitivity<0.005%/°C
Linearity: < 0.2%
Connector: 5 pin DIN

Top of Page

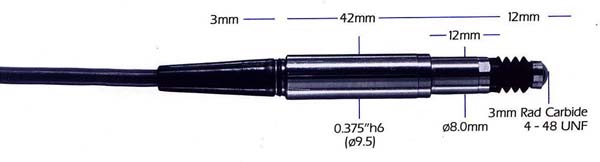

4002 1.5mm/60mil Linear Travel - 8mm Diameter

Specification: Half Bridge or LVDT
Mechanical Travel: 3.0mm
Boot Material: High Nitrile
Linear Travel: +/- 0.75mm
Travel to Null: 1.0mm; 0.25mm user option
Spring load at Null: 100 grams
Spring Rate: 20 grams/0.5mm
Repeatability: < 0.1 micron
Temperature Range: 0° to 60°C
Temperature Coefficient: Zero < 0.005%/°C Sensitivity<0.005%/°C
Linearity: < 0.15%
Connector: 5 pin DIN

Top of Page

4004 3.0mm/120mil Linear Travel - 8mm Diameter

The 4004 features long gaging stroke and user-adjustable pre-travel for increased application flexibility.

Specification: Half Bridge or LVDT
Mechanical Travel: 4.0mm
Boot Material: High Nitrile
Linear Travel: +/- 1.5mm
Travel to Null: User adjustable
Spring load at Null: 80 grams
Spring Rate: 25 grams/1mm
Repeatability: < 0.1 micron
Temperature Range: 0° to 60°C
Temperature Coefficient: Zero < 0.01%/°C Sensitivity<0.005%/°C
Linearity: < 0.15%
Connector: 5 pin DIN

Top of Page

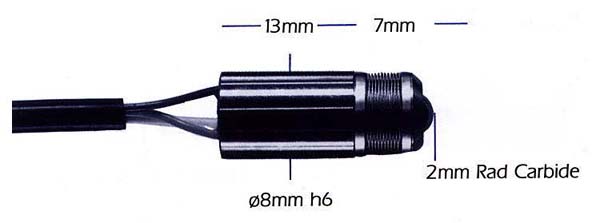

4010-0  0.5mm/20mil Linear Travel - 8mm Diameter

The 4010-0 is the shortest full linear-ball-bearing gaging transducer available.  This transducer has 8" of individual wires extending from the rear of the body which then connect to the normal jacketed cable for the remainder of the normal length.  Individual wires allow very tight bends at the rear of the unit without the strain which would result from a sharp bend in the multi-conductor cable.   This transducer must be used only where adequate protection for the wires can be accomplished.

Specification: Half Bridge only
Mechanical Travel: 0.8mm
Boot Nickel bellows fitted as standard
Linear Travel: +/- 0.250mm
Travel to Null: 0.350 +/- 0.05mm
Spring load at Null: 65 grams
Spring Rate: 30 grams/0.250mm
Repeatability: < 0.1 micron
Temperature Range: 0° to 60°C
Temperature Coefficient: Zero < 0.01/°C Sensitivity<0.005/°C
Linearity: < 0.2%
Connector: 5 pin DIN

Top of Page

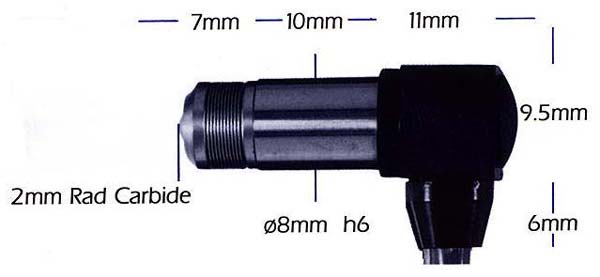

4010-1  0.5mm/20mil Linear Travel - 8mm Diameter

The 4010-1 transducers have a right-angle cable outlet, combining short length with a normal multi-conductor jacketed cable.  While slightly longer than the 4010-0 transducers, these units require no special cable protection.

Specification: Half Bridge only
Mechanical Travel: 0.8mm
Boot Nickel bellows fitted as standard
Linear Travel: +/- 0.250mm
Travel to Null: 0.350 +/- 0.05mm
Spring load at Null: 65 grams
Spring Rate: 30 grams/0.250mm
Repeatability: < 0.1 micron
Temperature Range: 0° to 60°C
Temperature Coefficient: Zero < 0.01/°C Sensitivity<0.005/°C
Linearity: < 0.2%
Connector: 5 pin DIN

Top of Page

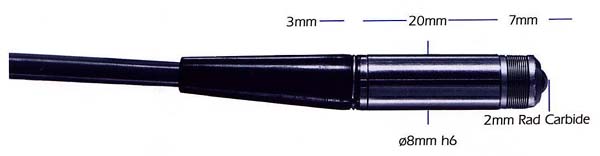

4010-2 0.5mm/20mil Linear Travel - 8mm Diameter

The 4010-2 transducers are a normal-cable version with an axial cable exit.

NOTE: The contact points on the 4010 series transducers are not removable, so the desired contact configurations must be specified at time of order.

Specification: Half Bridge or LVDT
Mechanical Travel: 0.8mm
Boot Material: Nickel bellows fitted as standard
Linear Travel: +/- 0.250mm
Travel to Null: 0.350 +/- 0.05mm
Spring load at Null: 65 grams
Spring Rate: 30 grams/0.250mm
Repeatability: < 0.1 micron
Temperature Range: 0° to 60°C
Temperature Coefficient: Zero < 0.01/°C Sensitivity<0.005/°C
Linearity: < 0.2%
Connector: 5 pin DIN

Top of Page

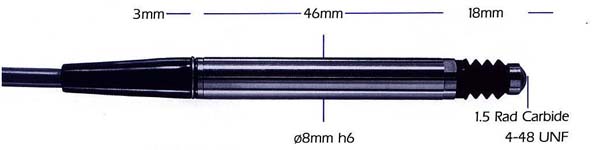

4012 2.0mm/80mil Linear Travel - 8mm Diameter

The 4012 transducers are industry - standard units.

Specification: Half Bridge or LVDT
Mechanical Travel: 3.0mm
Boot High Nitrile
Linear Travel: +/- 1mm
Travel to Null: 1.12mm; 0.37mm user option
Spring load at Null: 60 grams
Spring Rate: 20 grams/mm
Repeatability: < 0.1 micron
Temperature Range: 0° to 60°C
Temperature Coefficient: Zero < 0.005%/°C Sensitivity<0.005%/°C
Linearity: < 0.15%
Connector: 5 pin DIN

Top of Page

Attachments and Options

A variety of options including special sensitivity, connector type, body threads, tip types, cable exits and strokes are available.









Top of Page
